Home > Products > Electric Power Distribution System > Generator Set

20kw natural gas power plant

Price:

Get Latest Price

Min.Order Quantity:

1 Unit/Units

Supply Ability:

500 Unit/Units per Year

Port:

Qingdao

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

NPT

Products Model:

20GFT

Products Details
Company Profile

Quick Details

Brand Name: NPT

Model Number: 20GFT

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Wooden case
Delivery Detail: Within 20 days

Specifications

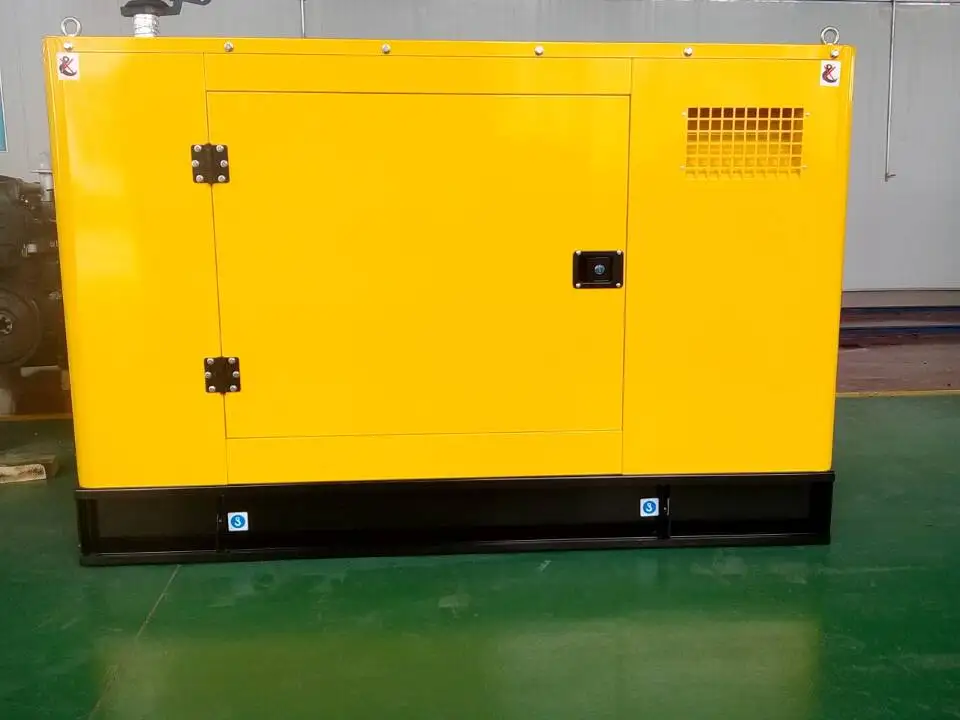

20kw natural gas power plant

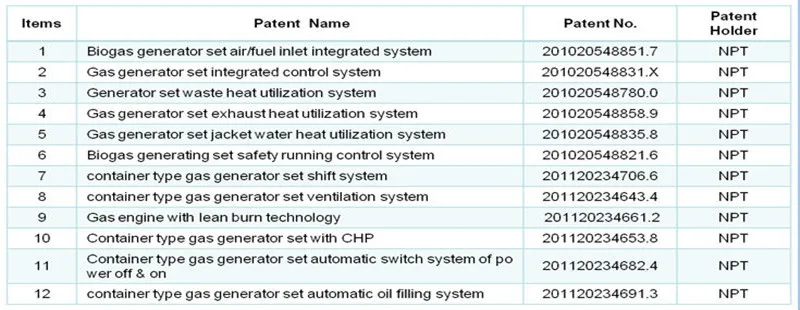

Our patent for NPT brand gas generator:

Our advantages on the alternator:

The techincal specification of 20kw natural gas generator prices

Generating set general Model		20GFT
Structure		integral
Exciting method		AVR Brushless
Rated Power (kVA/kW)		25/20
Rated Current(A)		36
Rated Voltage(V)		400/230
Rated Frequency(Hz)		50
Rated Power Factor		0.8 LAG
Overall dimension (L x W x H)(mm)		1600X800X1250
Net weight (kg)		610
Gas Engine	Model	NQ35D2.7
	Type	In line 4stroke, electric control ignition, pre-mixed stoichiometry burn
	Cylinder number	4
	Bore x Stroke (mm)	98x100
	Total displacement (L)	3.5
	Rated Power (kW)	27
	Rated Speed (r/min)	1500
	Fuel type	Natural gas / bio gas
Control panel	NPT Brand10 KZY	LCD display
	Circuit Breaker type	ATS
	Control Module	Smartgen
	Operation language	English
Alternator	Model	XN184F
	Brand	MBH(Germany brand)
	Shaft	Single bearing
	Rated Power (kW)	20
	Rating(kVA)	25
	Enclosure protection	IP23
	Efficiency (%)	86.2

Our certificate:

Our succeed cases in the world:

We are your best choice:
