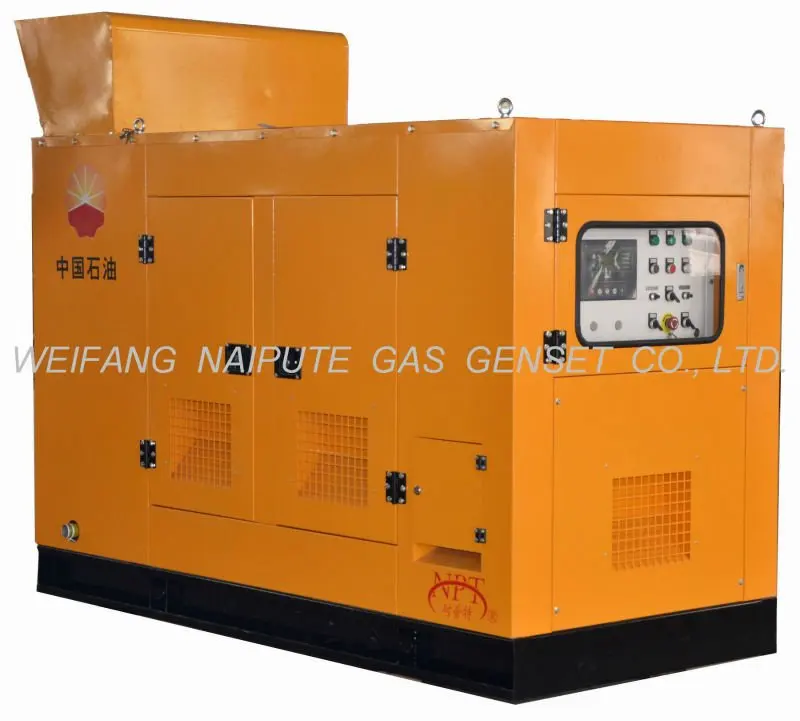

Petro China 30kW Soundproof natural gas electricity generators

Price:

Open price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

100 Set/Sets per Month

Port:

Qingdao port

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

NPT

Products Model:

30GFT

Products Details
Company Profile

Quick Details

Brand Name: NPT

Model Number: 30GFT

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Seaworthy package
Delivery Detail: Within 25 days after 30% deposit received

Specifications

30kW Natural Gas Generator Technical Parameter Sheet:

Generating set general Model		30GFT
Structure		integral
Exciting method		AVR Brushless
Rated Power (kW)		30
Rated Current(A)		54
Rated Voltage(V)		400/230
Rated Frequency(Hz)		50
Rated Power Factor		0.8 LAG
Overall dimension (L x W x H)(mm)		1880x740x1280
Net weight (kg)		850
Gas Engine	Model	NW48D3.6
	Type	In line, 4 strokes, electric control ignition, pre-mixed stoichiometry burn
	Cylinder number	4
	Bore x Stroke (mm)	110X126
	Total displacement (L)	4.8
	Rated Power (kW)	36
	Rated Speed (r/min)	1500
	Fuel type	Natural gas
Control panel	NPT Brand 30KZY	LCD display
	Circuit Breaker type	ATS/SKT1-63
	Control Module	Smartgen HGM6320
	Operation language	English
Alternator	Model	XN184H
	Brand	MBH( Germany brand)
	Shaft	Single bearing
	Rated Power (kW)	30
	Rating(kVA)	37.5
	Enclosure protection	IP23
	Efficiency (%)	86.2

Feature:

1. Rated power from 5kW to 500kW per set.

2. Adopt famous and reliable base engine and alternator home and abroad.

3. Display and Monitor Function:

Voltage, current, frequency, rotational speed, active power, apparent power, power factor,

water temperature, oil pressure, running hrs, accumulative total power, number of starts

etc.

4. Automatic Protection Alarm and Fault Storage Function:

High water temperature, low oil pressure, double over-speed, over current, over voltage,

over frequency and phase failure etc.

5. Low noise level, low gas consumption, high electric efficiency, low operation cost.

6. One special drawing design can be offered to you. Customized design is acceptable.

7. Optional devices:

CHP device, CCHP device, Soundproof enclosure, Engine self-starting device, Automatic

synchronizing panel, Emergency cooling system etc.

Certificate:
